Alcohol dehydrogenases (ADH, EC1.1.1.1) are a group of dehydrogenase enzymes that have extensive zymolytes and catalyze the interconversion between alcohols and aldehydes. With the reduction of nicotinamide adenine dinucleotide (NAD⁺ to NADH), ADH facilitate the dehydrogenation of primary alcohols or secondary alcohols, aldehydes and ketones to lose their hydrogen, In this reaction, the NAD⁺ gains dehydrogen and become NADH.

ADH widely occurs in all kinds of organs in plant, which involves in development, maturation and senescence of fruits (Chervin et al., 1999), as well as in the resistant responses to stresses. ADH can be induced to express by dehydration, cold (Dolferus et al., 1994) and oxygen deficit (Newman and Vantoai, 1992), as well as ADH has some links to Ca²⁺ signal transduction (Hwa-Jee and Ferl, 1999). Most of ADH in plants have the structures with the length of amino acid sequence from 370 to 380, which evenly consist of three folding structures, helix, folding and curling. There is little difference of secondary structure in ADH among the plant species, particularly in the parts of conservative function domains. Even though there is a few differences in amino acid sequences among individuals, the difference in folding status of peptide chain is usually very small, which indicates that highly conservative secondary structures should maintain the functional stabilities. Meanwhile, the highly conservation of ADH sequences in all kinds of species indicated that the ADH play an important role in plant growth, so that any slight mutation in ADH will result in death of plant.

The study of ADH gene was initiated in corn (Zea mays). ZmADH1 gene and ZmADH2 gene were cloned successfully from corn (Gerlach et al., 1982). The 82% homology of the deoxyribonucleic acid (DNA) was between two genes whereas 87% homology in the sequences of amino acids, which indicated that both of the genes possible derive from the common ancestor although the location of the genes in the genome are at different chromosomes. ZmADH1 was located at chromosome 1 and ZmADH2 was located at chromosome 4. So far, there are some reports on ADH1 and ADH2 genes cloned in grape (Vitis vinifera), potato (Solanum tuberosum), rice (Oryza sativa) and wheat (Triticum monococcum). However, only one ADH gene, AtADH1, was reported in Arabidopsis, which located at chromosome 1, whose sequences of nucleotides in genome distributed from 28 980 288 to 28 982 311. While, there was no any annotation about AtADH2. In Lotus, a model plant of legume, the LcADH1 (GenBank ID: AAO72531.1) had been identified from tetraploid species, Lotus corniculatus, whereas there was no any report about the gene, LjADH1 or LjADH2 cloned from Lotus japonicus, a popular diploid species so far.

Lotus plant belongs to the genus Lotus L. in subfamily of Papillionoideae of Leguminosae family. Lotus japonicus, a diploid species has been instead of tetraploid species of Lotus corniculatus used for genetic study because of small genome size of about 470Mb, diploid genome with 6 haploid chromosomes (2n=12) and a short life cycle of about 2 to 3 months. With the completion of whole genome sequenced, Lotus japonicus has become a convenient model plant for the studies of genome and genetics in legumes, particularly in reference to rhizobial and arbuscular mycorrhizal symbiosis since in the early 1990s (Handberg and Stougaard, 1992). Based on the conservative characteristics of ADH genes, we used MG20, a Lotus japonicus germplasm originated from Miyako Island of Japan (Kawaguchi, 2000), as experimental materials to clone homologous ADH gene from Lotus japonicus cDNA, to express the gene in E. coli and yeast and to characterize the enzyme in this study.

1 Results and analysis
1.1 Cloning and sequence analysis of LjADH1
In this research we designed a pair of primers based on the information of LcADH1 to amplify the ADH analog using cDNA from Lotus japonicus MG20 as template. The analog was cloned from MG20 germplasm and then sequenced, which was 1 143 bp in length encoding 380 amino acids. The further sequence alignment indicated that the cloned sequence had 99% homology to an unannotated Lotus japonicus sequence deposited in the GenBank (GenBank ID: CAG30579.1). We conferred the sequence as ADH1of Lotus japonicus named as LjADH1 (GenBank Accession No.: JN165714).

Multiple sequence alignment was conducted among putative LjADH1 protein and other ADH proteins from Zea mays, Triticum monococcum, Oryza sativa, Arabidopsis thaliana, Lotus corniculatus, Aegilops speltoides, Vitis vinifera, Solanum tuberosum and Miscanthus transmorrisonensis, respectively (Figure 1), the results showed that the cloned protein sequence had more than 95% homologous with other ADH sequences except MtADH (80%). The analysis indicated that the cloned sequence has common ADH structures of plant ADH including zinc-binding sites, ADH_N domain and NADB_Rossmann conservative functional domain. Phylogenetic analysis further demonstrated that ADH gene from Lotus japonicus shared the same evolutionary branch with AtADH of Arabidopsis thaliana (Figure 2).

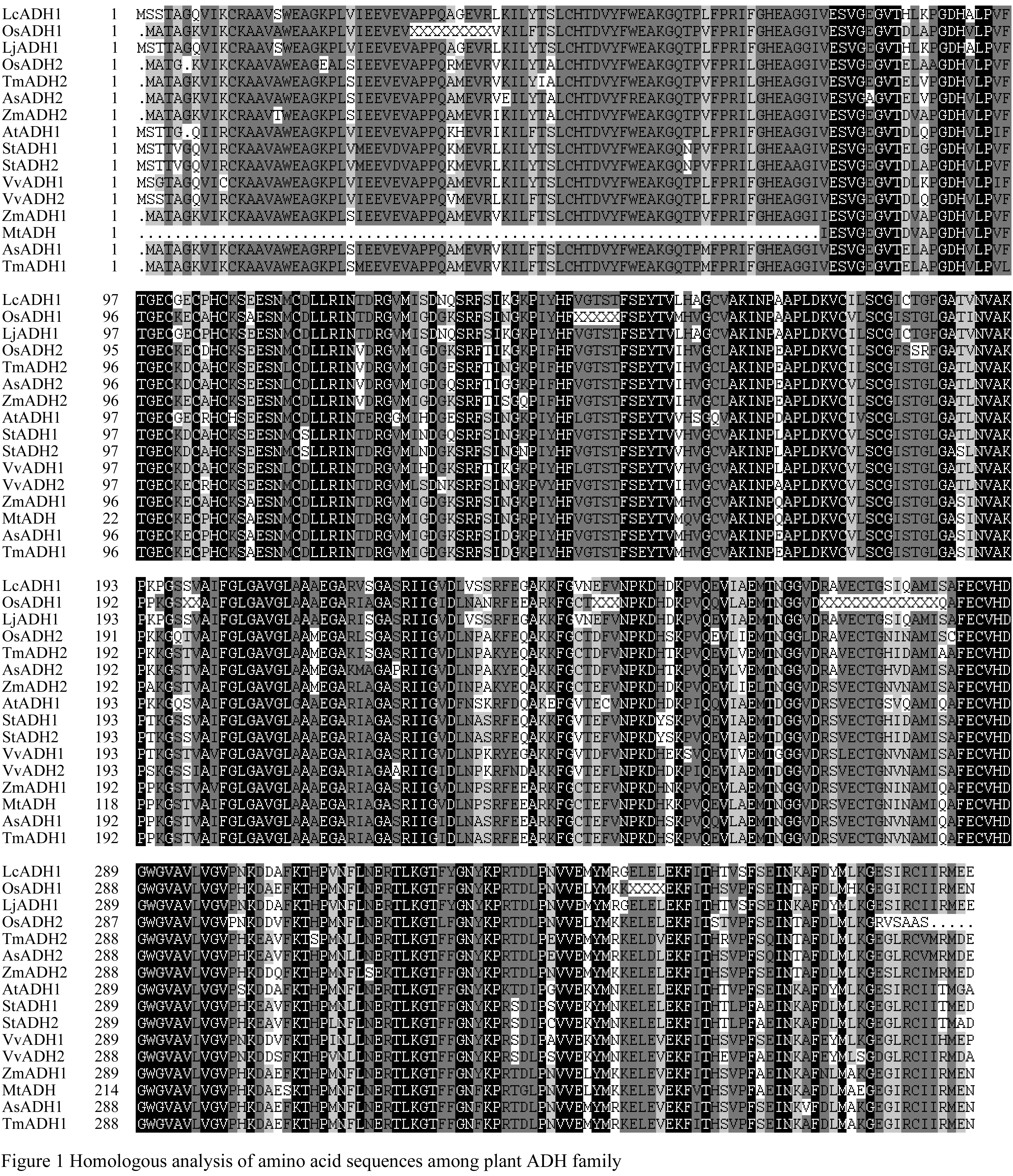

Figure 1 Homologous analysis of amino acid sequences among plant ADH family

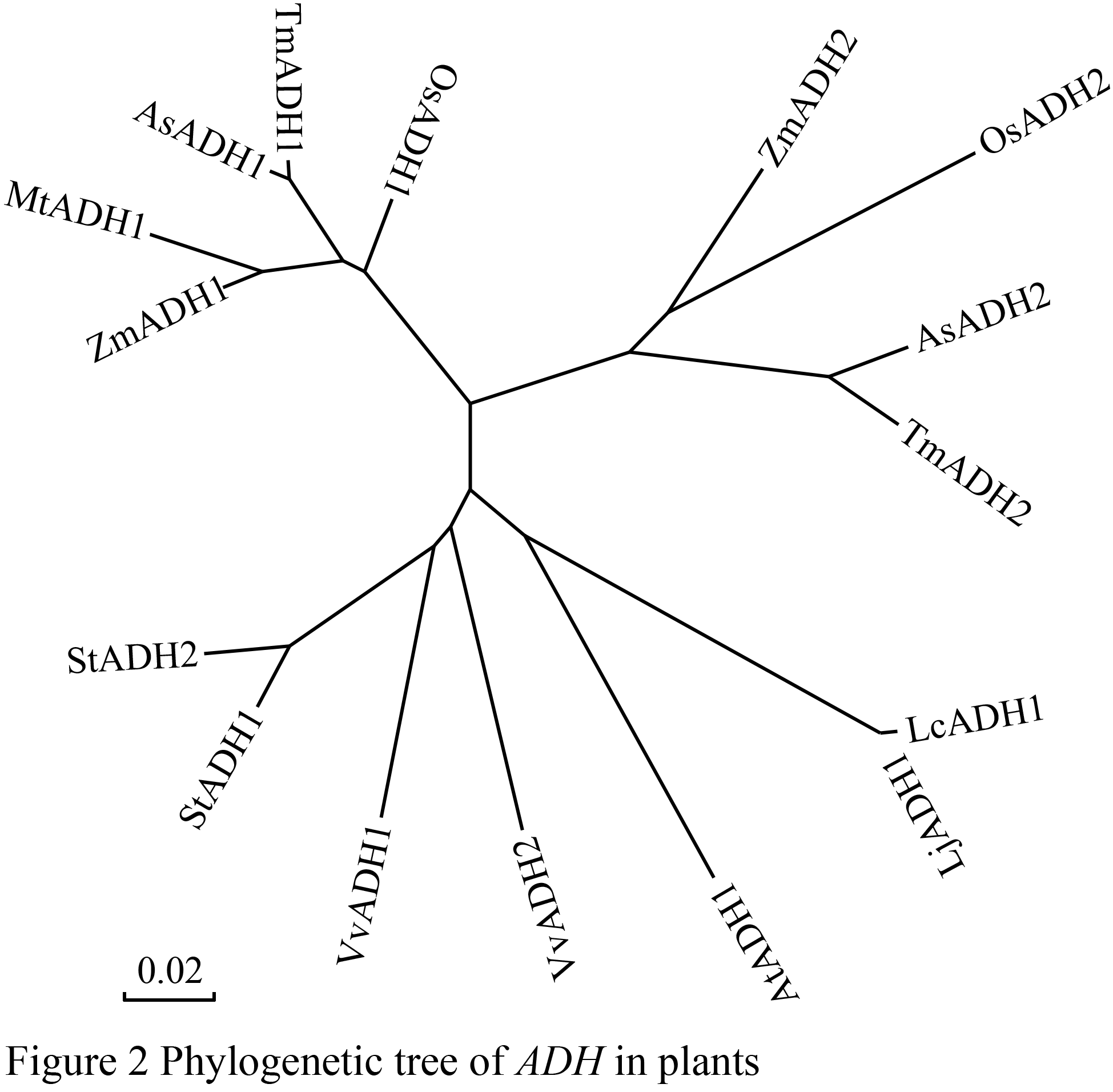

Figure 2 Phylogenetic tree of ADH in plants

1.2 Construction of prokaryotic expression vector
In order to express the LjADH1 gene in E. coli, We employed the prokaryotic expression vector pQE30, which has a 6 histidine tag, little influence on targeted proteins and easy to be purified (Wang et.al., 2010; Liu et.al., 2010; 2011), to make the heterologous expression construct pQE30-LjADH1. The construct was validated by digestion of BamHâ…  and Sac â… to produce 3.4 Kb and 1.1 Kb fragments by agarose gel electrophoresis (Figure 3), those fragments in length, were in accord with the size of pQE30 and LjADH1 sequence.

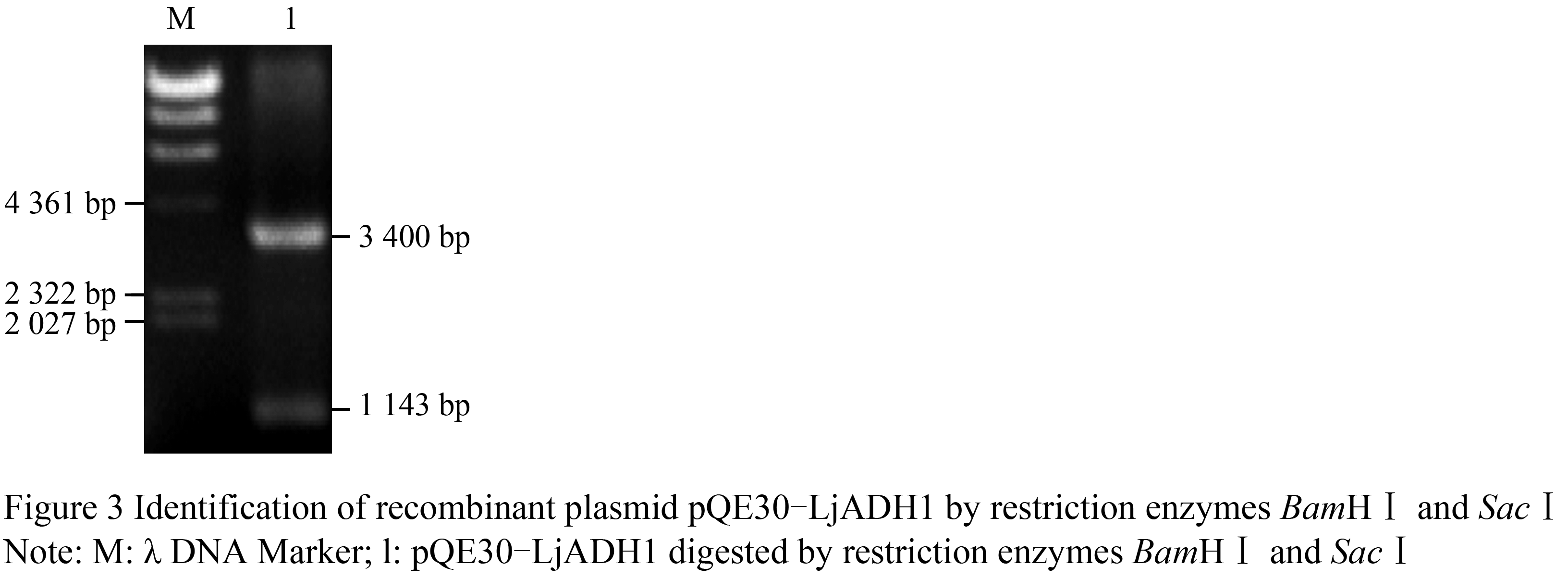

Figure 3 Identification of recombinant plasmid pQE30-LjADH1 by restriction enzymes BamHâ…  and Sacâ…

 1.3 Expression of fusion protein and concentration determination
We transformed pQE30-LjADH1 into E. coli M15 strains to express LjADH1 fusion protein in E. coli and optimized the conditions of fusion protein expression. The result showed that fusion proteins were expressed by inducing of IPTG at 0.1 mmol/L of IPTG concentration, with the optimum induction time 3 h to 4 h and induction temperature at 30℃ (Figure 4). The concentration of purified fusion protein 6×His-LjADH1 was measured at 1.12 mg/mL by the BCA method, the concentration of 6×His-LjADH1 under the optimum expression conditions.

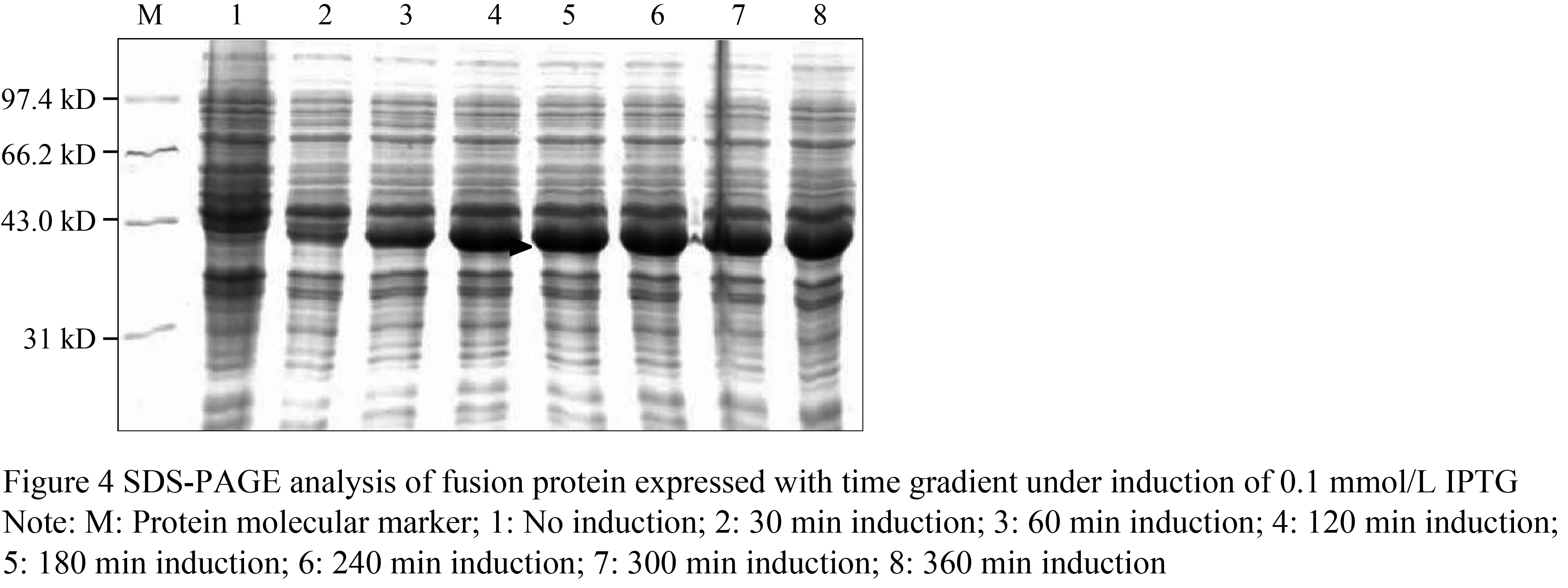

Figure 4 SDS-PAGE analysis of fusion protein expressed with time gradient under induction of 0.1 mmol/L IPTG

1.4 Enzymatic activity of fusion LjADH1 protein
We proposed the expressed fusion protein of LjADH to be a kind of dehydrogenase, therefore we employed the Vallee and Hoch method to measure enzymatic activity (Vallee and Hoch, 1955). The principle of this method is that NADH and NAD⁺ have their own maximum absorption peaks at 340 nm and 260 nm, respectively, so as NAD⁺ was converted to NADH, the maximum absorption peaks at 260 nm will be shifted to 340 nm. The enzymatic activity of LjADH1 was calculated following the formula, U/mg=E₃₄₀×3.1/(6.2×E_W), here E₃₄₀ is the absorbance increase within 5 minutes at 340 nm (absorbency units 0.001), E_W is the weight (mg) of enzyme per mL enzyme solution. In this research we measured that absorbance change of LjADH1 in a minute was 0.108, so LjADH1 enzymatic activity come out 48.2 U/mg (figure 5).

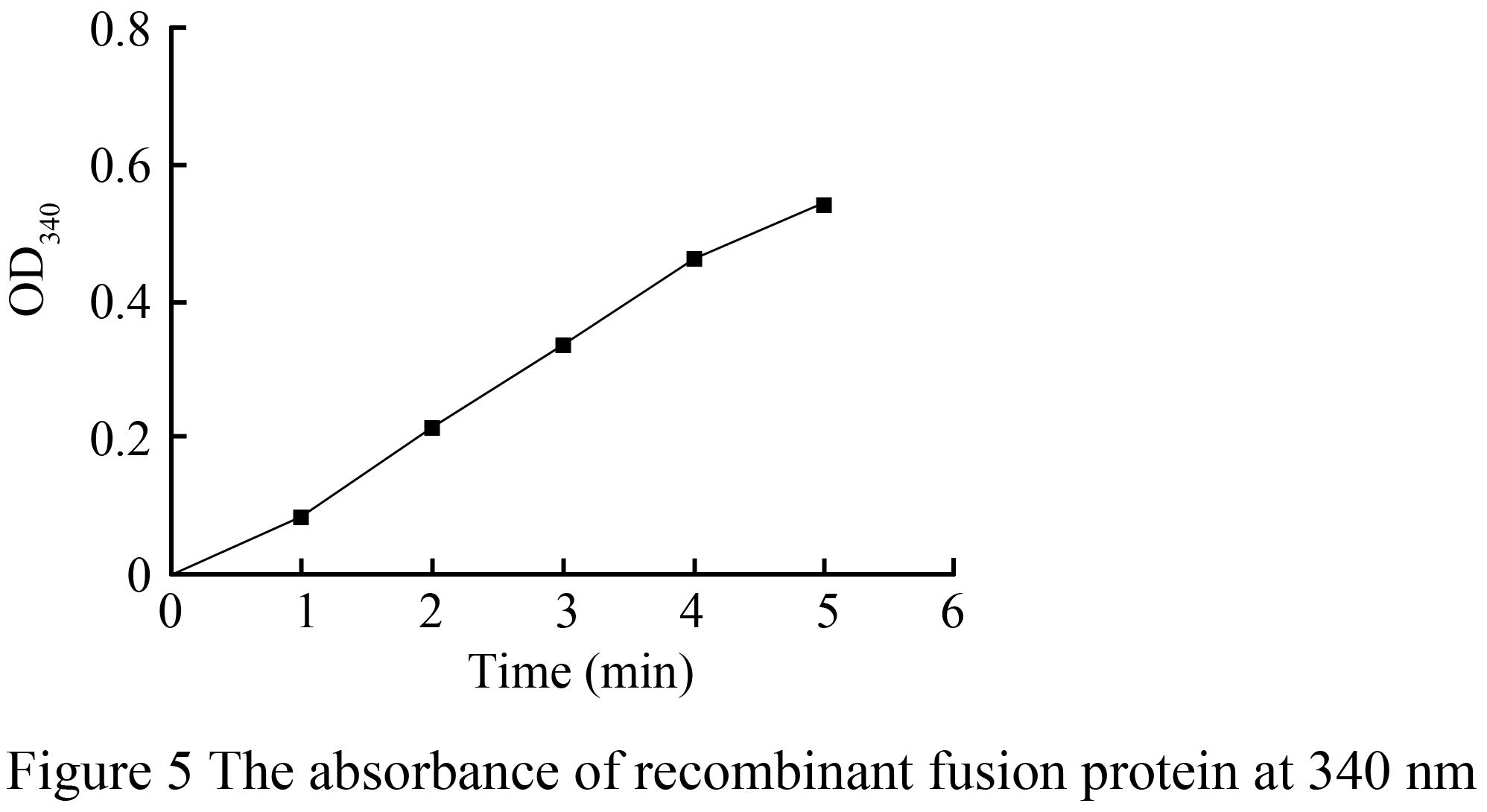

Figure 5 The absorbance of recombinant fusion protein at 340 nm

1.5 Resistant analysis of the prokaryotic fusion protein
We added H₂O₂ into E. coli M15 recombinant strain which harboring pQE30-LjADH1 and reference strain with pQE30. The reference strain grew better than that of recombinant strain in absence of H₂O₂. This phenomena might be due to the effect of over-expressed heterologous proteins during bacteria growth stages. Whereas when we added  H₂O₂ into recombinant strain solution at 1 mmol/L  H₂O₂ final concentration, the recombinant strain obviously  grew better than that of the reference strain (Figure 6). The results suggested that alcohol dehydrogenase might have some functions in the survival capability of prokaryotes under oxidative stress.

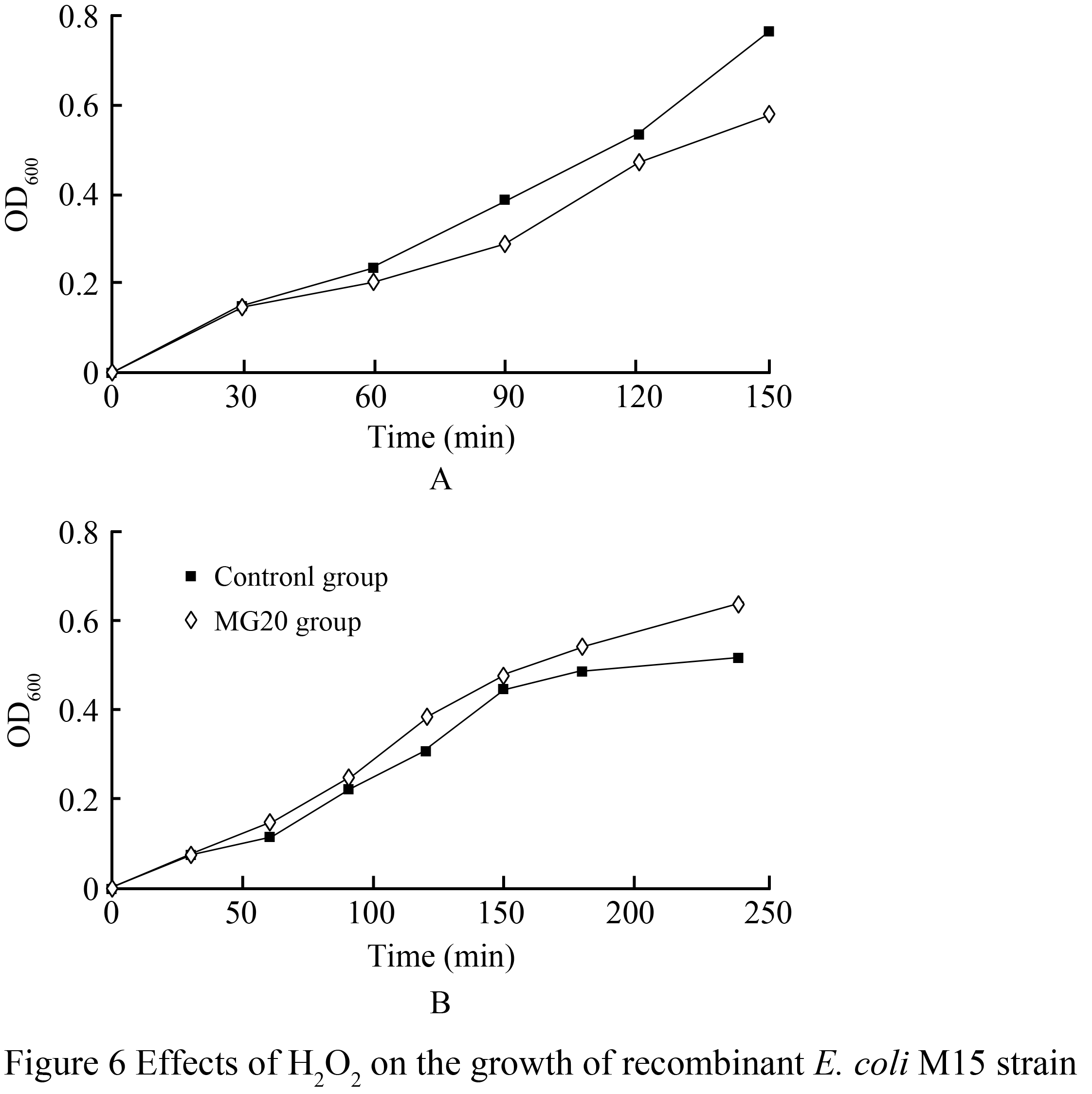

Figure 6 Effects of H2O2 on the growth of recombinant E. coli M15 strain

1.6 Construction of eukaryotic expression vector pYES2-LjADH1
In this research, we constructed a yeast expression construct named pYES2-LjADH1, The construct was validated by digestion of restriction enzymes BamH â…  and Xbaâ…  to produce 5.9 Kb and a 1.1 Kb fragment by agarose gel electrophoresis(Liu et al., 2010, Wang et al., 2010) (figure 7A), those fragments in size were in accord with the size of pYES2 and LjADH1 sequence. that was confirmed by digestion of restriction enzymes BamHâ…  and Xbaâ… . The recombinant strains were also identified by PCR to confirm that the pYES2-LjADH1 were transferred into yeast (figure 7B).

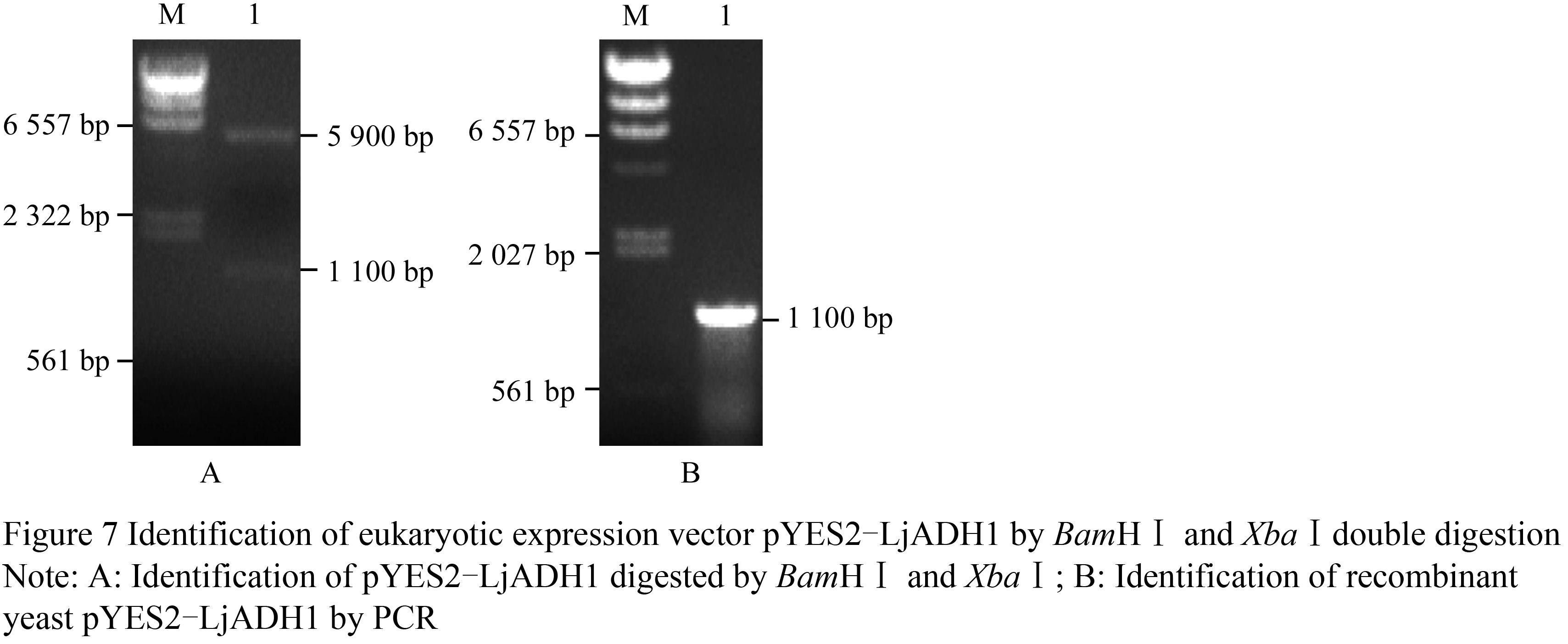

Figure 7 identification of eukaryotic expression vector pYES2-LjADH1 by BamHâ…  and Xbaâ… double digestion

1.7 Resistant analysis of LjADH1 protein expression in yeast
In order to understand how do the LjADH1 protein response to different ion stresses, we inoculated the recombinant yeast strain with pYES2-LjADH1 and wild type strain pYES2 in the YPG media with different ion concentrations, respectively, (Figure 8). The responses showed that the growth status between the recombinant and its wild type yeast had very similar in the YPG medium without any treatment, but the recombinant yeast grew better than the wild type in the YPG media with final concentrations of 10 mmol/L CuCl₂, 100 μmol/L CdCl₂, 150 μmol/L CdCl₂ and 3.5 mmol/L H₂O₂, respectively. There is no any response between the recombinant and wild type in concentration of 1.8 mmol/L NiCl₂. The results indicated that the LjADH1 protein has some resistant functions to oxidative stress in yeast. With reference to evidence of the recombinant yeast growth in the concentration of 3.5 mmol/L H₂O₂  we considered that LjADH1 might have certain resistant functions to abiotic stresses. There was a report that the plants will lack of resistance to waterlogging while the ADH gene in plant is going to silence, whereas over-expressing ADH alone might not yet improve the plant resistance to waterlogging (Ismond et al., 2003). Therefore the functions of LjADH1 in plants need to be further studied in future.

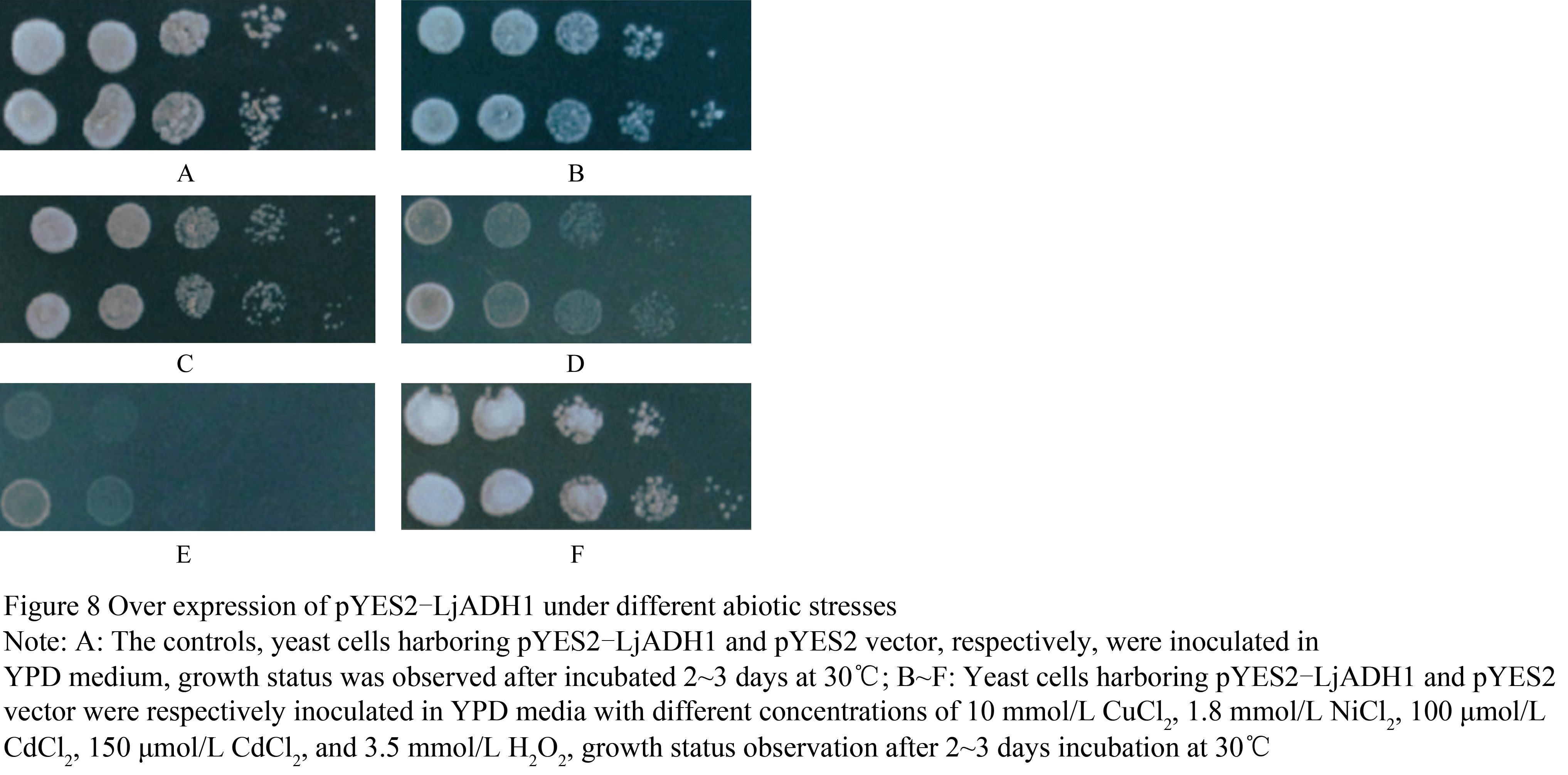

Figure 8 Over expression of pYES2-LjADH1 under different abiotic stresses

 2 Conlusions
In this research, we cloned alcohol dehydrogenase gene from Lotus japonicus MG20, and considered that the gene encodes a typical zinc-binding alcohol dehydrogenase, named as LjADH1.

In this research, the gene was ligated to pQE30 expression vector with a 6×His tag, and a batch of nondenaturalized proteins was expressed in E. coli and purified by Ni⁺-NTA gel column under the optimum induced expression conditions. The enzymatic activity of the LjADH1 was determined by method proposed by Vallee and Hoch, which demonstrated strong alcohol dehydrogenase activity. In respect to stress tolerance of fusion proteins over-expressed in the E. coli and yeast, the recombinant strains grew well than that of the wild type. While, LjADH1 gene was ligated into the yeast vector pYES2 to over-express LjADH1 gene in yeast cells, the result showed that the growth status of the recombinant yeast harboring pYES2-LjADH1 were much better than that of the wild type with pYES2 under the stresses of 10 mmol/L CuCl₂, 100 μmol/L CdCl₂, 150 μmol/L CdCl₂ and 3.5 mmol/L H₂O₂, respectively, but except for 1.8 mmol/L NiCl₂. It was obvious that the LjADH1 protein over-expressed in yeast might increase the yeast cells' tolerance to abiotic stresses. In this research we have preliminary clues that LjADH1 is a member of zinc-binding ADH family proteins in plant and that has some functions for resistance to abiotic stresses.

3 Materials and Methods
3.1 Materials used in this research
The Lotus japonicus MG20 seeds were kindly provided by Dr. Da Luo (Professor of Sun Yat-Sen University, P. R. China) and were deposited in Hainan Institute of Tropical Agricultural Resources (HITAR, China). The seeds were sanitized and germinated in greenhouse for 24 h at 30℃ prior to planting in flowerpots (5×7 cm) with 12 h/12 h day/night cycle at 26℃, 80% humidity. Two weeks later, the seedlings were collected and cleaned for ready.

The bacteria and plasmids used in this research including E. coli JM109, Yeast strain INVScl (Clon- tech), E. coli M15, pMD18-T (TaKaRa), pQE30 (Qiagen), pYES2(Clontech) were deposited in the lab of Alkali Soil Natural Environmental Science Center (ASNESC), Northeast Forestry University. Enzymes and chemicals including restriction enzyme, EX Taq TM, T4 DNA ligase, kanamycin et. al. were purchased from Takara Company.

3.2 cDNA synthesis, Gene cloning and sequence analysis
Total RNA from MG20 was extracted using Biozol Total RNA Extraction kit (Biomiga). The first strand cDNA of Lotus japonicus MG20 was synthesized by RT-PCR using RNA (AMV) reverse transcription kit (Takara) by RT-PCR following the procedures as: 30℃, 10min; 42℃, 15min; 50℃, 15min; 55℃, 15min; 60℃, 15min; 90℃, 10min; 5℃, 5min; for 30 cycles.

A pair of primers was designed according to known LcADH1 gene, forward primer was given as 5'-TAGCTATGTCGACCACAGCT-3', reverse primer as 5'-AACTCAGTCCCCAAATAGGG-3'. ADH analogus gene was amplified from Lotus japonicus MG20 cDNA under the procedures as follows: predenaturation at 95℃ for 3 min, followed by 30 cycles (95℃ 30 sec, 52℃ 30 sec and 72℃ 2 min), and ended at 72℃for 10 min. The PCR products were separated by agarose gel electrophoresis and ligated into pMD18-T vector (Takara), then transformed into E. coli JM109 strain. The positive clones were selected to be sequenced at Beijing Genomic Institute, China). Sequence analysis was conducted online in NCBI for Blast and phylogenetic analysis.

3.3 Construction of prokaryotic expression vector
We designed a pair of primers with the restriction sites of BamHⅠand SalⅠby Primer Premier (Version 5.0), forward primer with BamHⅠ as 5'-GGGATCCATGTCGACCACAGCT-3', and reverse primer with SalⅠ as 5'-CGGAGCTCACACATCATTGTTTTTG-3', respectively. The plasmid for sequencing was used as templates to amplify the gene following the procedures as pre-denaturation at 95℃ for 3 min, followed by 30 cycles (95℃ 30 sec, 54℃ 30 sec and 72℃ 2 min), and ended at 72℃ for 10 min. The PCR products were recovered to ligated into pMD18-T vector named as pMD18T-LjADH1, and then transformed into E. coli JM 109 strains by the approach of thermal stimulation. Meanwhile the recombinant plasmids and pQE30 vectors were extracted to be digested by SacⅠ and BamHⅠ, respectively, and then have the LjADH1 ligated to the pQE30 vector to make recombinant vector, pQE30-LjADH1. We transformed pQE30-LjADH1 into E. coli JM109 competent cells. Monoclonal was randomly picked up for PCR amplification to identify whether the gene transformed into E. coli M15 strains by BamHⅠ and SacⅠ digestion.

3.4 Expression of fusion protein and concentration determination
The recombinant E. coli M15 strains harboring pQE30-LjADH1 were inoculated into resistant medium and incubated overnight at 37℃ and 200 r/min shaking culture. Then 200 μL overnight incubated strains was added into 5 mL LB liquid medium containing 100 μg/mL ampicillin and 25 μg/mL kanamycin to continue shaking culture at 37℃. While the OD₆₀₀ value reached 0.6, IPTG was added with a final concentration of 0.1mmol/L to induce target fusion protein. Under the shaking culture at the speed of 200 r/min at 30℃, the recombinant strains were collected after induced for 0 min, 30 min, 60 min, 120 min, 180 min, 240 min, 300 min and 360 min, respectively. The supernatant was discarded by centrifugation at 13 000 r/min at 4℃ for 1 min, and precipitate was re-suspended with PBS, then added equivalent 2×SDS sample buffer, denatured for 5 min at 100℃ and cooled on ice bath for 5 min, finally centrifugated at 13 000 r/min at 4℃ for 5 min. Took about 20 μL of the samples used for SDS-PAGE electrophoresis.

Protein concentration was measured by the BCA method (Walker, 1994). 37.5 μL (8 mg/mL) BSA was added into 262.5 μL ddH₂O to make protein standard solution with final BSA concentration 1 mg/mL, took 150 μL solution diluted 7 times consecutively to prepare BSA diluting standard solution with the concentrations at 500 μg/mL, 250 μg/mL, 125 μg/mL, 62.5 μg/mL, 31.25 μg/mL, 15.625 μg/mL, and 7.813 μg/mL, respectively. The purified fusion proteins was also diluted and then took 100 μL diluted standard solutions respectively to mix with 2 400 μL CBB (Coomassie Brilliant Blue), the OD₅₉₅ value was read three times by spectrophotometer using ddH2O as reference.

3.5 Enzymatic activity of Fusion protein
Enzymatic activity of fusion protein was measured by the method of Vallee and Hoch (Vallee and Hoch, 1955), 150 μL pyrophosphate buffer, 50 μL substrate solution and 100 μL solution of NAD⁺ were mixed to a cuvette. The cuvette was placed in water bath at 37℃ for 5min and then added 10 μL purified fusion protein solution preheated under the same conditions, immediately count the time and read the increase of absorbance at 340 nm every 1min interval in the successive 5min until the values of absorbance is stable.

3.6 Resistant analysis of the fusion protein expressed in E. coli
Employ Echave's method to be slightly modified to analyze the prokaryotic resistance (Echave et al., 2003) in this reserch. 2.5 mL recombinant strain solution and its reference respectively cultured overnight until the OD₆₀₀ reached 0.3, then added 22.5 mL LB media containing 100 μg/mL ampicillin and 25 μg/mL kanamycin cultured at 37℃. then 0.1 mmol/L IPTG was added to dilute ten times, The cultured media were divided into two groups, one group of the recombinant added H₂O₂ with a final concentration of 1 mmol/L and the other group added water as control, the OD₆₀₀ values were measured in every 30 min to calculate the resistant activity.

3.7 Construction of yeast expression vector
The primers were designed based on LcADH1 sequence information, forward primer as: 5'-GGGATCCATGTCGACCACAGCT-3' with BamH â…  site, and reverse primer as: 5'-CGTCTAGAACACATCATTGTTTTTG-3 with Xbaâ…  site. pMD18T-LjADH1 (with restriction sites BamHâ…  and Xbaâ… ) and pYES2 (Clontech) vectors were digested with BamHâ… and Xbaâ… . The products of digestion were recovered to ligate into pYES2 vector, the recombinant was named pYES2-LjADH1. then transformed into the yeast INVScl (Clontech) by LiAc/PEG chemical transformation method (Gietz et al., 1995).

3.8 Resistant analysis of LjADH1 protein expressed in yeast
The recombinant INVScI strains harboring pYES2 and pYES2-LjADH1 respectively were cultured in liquid SC-U medium at 30℃ overnight culture until the OD₆₀₀ reached 0.6. Then diluted them to 10^-1 times, 10^-2 times, 10^-3 times, 10^-4 times and 10^-5 times, respectively with YPG medium. Picked up 5 µL strain solution in the pYES2-LjADH1 and pYES2 medium in each dilution concentration, dropped on YPG solid medium which containing 10 mmol/L CuCl₂, 1.8 mmol/L NiCl₂, 100 μmol/L CdCl₂, 150 μmol/L CdCl₂ and 3.5 mmol/L H₂O₂, respectively cultured at 30℃ for 2 days.

Authors' contributions
TZ and SKL designed and conducted this experiments. RYL, PTG and DGZ participated the experiment design and data analysis; XJF is the person who takes charge of this project, including experiment design, data analysis, writing and modifying of the manuscript. All authors have read and approved the final manuscript.

Acknowledgements
This research was supported by Scientific Supporting Project of Ministty of Science and Technology of China (2007BAD59B05). Authors appreciate Dr X Zhang from the ASNESC of N FU for her kindly technological supports and helpful advice on the experiment. Many thanks to two anonymous reviewers for their useful critical comments and revising advice to this paper. And also we mentioned some reagent suppliers and sequencing service providers in this work, that doesn’t mean we would like to recommend or endorse their products and services.

references
Chervin C., Truett J.K., and Speirs J., 1999, Alcohol dehydrogenase expression and alcohol production during pear ripening, American Society for Horticultural Science, 124(1): 71-75

Dolferus R., Jacobs M., Peacock W.J., and Dennis E.S., 1994, Differential interactions of promoter elements in stress responses of the Arabidopsis Adh gene, Plant Physiol., 105(4): 1075-1087 doi:10.1104/pp.105.4.1075 PMid:7972489    PMCid:159435

Echave P., Tamarit J., Cabiscol E., and Ros J., 2003, Novel antioxidant role of alcohol dehydrogenase E from Escherichia coli, Journal of Biological Chemistry, 278(32): 30193-30198 doi:10.1074/jbc.M304351200 PMid:12783863

Gerlach W.L., Pryor A.J., Dennis E.S., Ferl R.J., Sachs M.M., and Peacock W.J., 1982, cDNA cloning and induction of the alcohol dehydrogenase gene (Adh1) of maize, Proc. Natl. Acad. Sci., 79(9): 2981-2985
doi:10.1073/pnas.79.9.2981

Gietz R.D., Schiestl R.H., Willems A.R., and Woods R.A., 1995, Studies on the transformation of intact yeast cells by the LiAc/SS-DNA/PEG procedure, Yeast, 11(4): 355-360 doi:10.1002/yea.320110408
PMid:7785336

Handberg K., and Stougaard J.S., 1992, Lotus japonicus, an autogamous, diploid legume species for classical and molecular genetics, The Plant Journal, 2(4): 487-496 doi:10.1111/j.1365-313X.1992.00487.x

Hwa-Jee C., and Ferl R.J., 1999, Arabidopsis alcohol dehydrogenase expression in both shoots and roots is conditioned by root growth environment, Plant Physiol., 121(2): 429-436 doi:10.1104/pp.121.2.429 PMid:10517834    PMCid:59405

Ismond K.P., Dolferus R., Pauw M.D., Dennis E.S., and Good A.G., 2003, Enhanced low oxygen survival in Arabidopsis through increased metabolic flux in the fermentative pathway, Plant Physiol., 132(3): 1292-1302 doi:10.1104/pp.103.022244 PMid:12857811    PMCid:167069

Kawaguchi M., 2000, Lotus japonicus Miyakojima' MG-20: An early-flowering accession suitable for indoor handling, Journal of Plant Research, 113(4): 507-509 doi:10.1007/PL00013961

Liu B.H., Watanabe S.H., Uchiyama T., Kong F.J., Kanazawa A., Xia Z.J., Nagamatsu A., Arai M., Yamada T., Kitamura K., Masuta C., Harada K., and Abe J., 2010, The Soybean stem growth habit gene Dt1 is an ortholog of Arabidopsis TERMINAL FLOWER1, Plant Physiology, 153(1): 198-210 doi:10.1104/pp.109.150607 PMid:20219831    PMCid:2862436

Liu Z.M., Liu S.K., Li Y.Z., and Fang X.J., 2010, Heterologous expression and purification of Cry1Ac22 toxin from Bacillus thuringiensis W015-1, Bioscience Methods, 2010, Vol.1 No.2 (DOI: 10.5376/bm. 2010.01.0002)

Liu Z.M., Zhou Y., Li Y.Z., Liu S.K., and Fang X.J., 2011, Construction of plant expression constructs harboring full-length Bt Cry1Ac22 toxin gene and truncated functional Bt Cry1Ac22 toxin gene and Arabidopsis transformation, Bioscience Methods, Vol.2, No.3 (DOI: 10.5376/bm.2011.02.0003)

Newman, K.D., and Vantoai T.T., 1992, Molecular characterization of the soybean alcohol dehydrogenase gene family amplified in vitro by the polymerase chain reaction, Plant Physiol., 100(1): 489-495 doi:10.1104/pp.100.1.489 PMid:16652988    PMCid:1075576

Vallee B.L., and Hoch F.L., 1955, Yeast alcohol dehydrogenase, a zinc metalloenzyme, Journal of the American Chemical Society, 41(6): 327-338

Walker J.M., ed., 1996, The protein protocols handbook, Humana Press Inc., Totowa, New Jersey, USA, pp.11-14 doi:10.1007/978-1-60327-259-9_3

Wang S.L., Liu S.K., Yu G.H., Gong P.T., Zhao D.G., and Fang X.J., 2010, Studies on rice Epoxide hydrolase: Gene cloning and expressing in E. coli, yeast and Arabidopsis, Rice Genomics and Genetics, Vol. No.2 (DOI: 10.5376/rgg.2010.01.0002)

Wang S.L., Liu S.K., Yu G.H., Gong P.T., Zhao D.G., and Fang X.J., 2010, Large preparation and purification of rice epoxide hydrolase expressed in Escherichia coli, Genomics and Applied Biology, Vol.1 No.5 (DOI: 10.5376/gab. 2010.01.0005)
