De Novo RNA Seq Assembly and Annotation of   Cicer arietinum  L. (SRR627764)

Sagar S. Patel<sup>1</sup>; Dipti B. Shah<sup>1</sup>; Hetalkumar J. Panchal<sup>2</sup>

De Novo RNA Seq Assembly and Annotation of Cicer arietinum L. (SRR627764)

Sagar S. Patel¹

, Dipti B. Shah¹

, Hetalkumar J. Panchal²

1. G. H. Patel Post Graduate Department of Computer Science and Technology, Sardar Patel University, Vallabh Vidyanagar, Gujarat-388120, India
2. Gujarat Agricultural Biotechnology Institute, Navsari Agricultural University, Surat, Gujarat- 395007, India

Author

Correspondence author
Legume Genomics and Genetics, 2014, Vol. 5, No. 6 doi: 10.5376/lgg.2014.05.0006
Received: 30 Jul., 2014 Accepted: 03 Sep., 2014 Published: 11 Oct., 2014

This is an open access article published under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Preferred citation for this article:

Patel et al., 2014, De Novo RNA Seq Assembly and Annotation of Cicer arietinum L. (SRR627764), Legume Genomics and Genetics, Vol.5, No.6 1-5 (doi: 10.5376/lgg.2014.05.0006)

Abstract

Cicer arietinum L. which is also known as Chickpea; is the third most consumed legume crop, which is cultivated in arid andsemi-arid areas around the world. Recently, next-generation sequencing technology, termed RNA-seq, has provided a powerful approach for analysing the Transcriptome. This study is focus on RNA-seq of Cicer arietinum L. of SRR627764 from NCBI database for de novo Transcriptome analysis. A total of 36 million single reads were generated with N50 of 1239 bp. Sequence assembly contained total 34678 contigs which is further search with known proteins, a total of 945 genes were identified. Among these, only 786 unigenes were annotated with 2304 gene ontology (GO) functional categories and sequences mapped to 78 pathways by searching against the Kyoto Encyclopedia of Genes and Genomes pathway database (KEGG). These data will be useful for gene discovery and functional studies and the large number of transcripts reported in the current study will serve as a valuable genetic resource of the Cicer arietinum L..

Keywords

Transcriptome; Bioinformatics; Cicer arietinum L.

Next generation sequencing methods for high throughput RNA sequencing (transcriptome) is becoming increasingly utilized as the technology of choice to detect and quantify known and novel transcripts in plants. This Transcriptome analysis method is fast and simple because it does not require cloning of the cDNAs. Direct sequencing of these cDNAs can generate short reads at an extraordinary depth. After sequencing, the resulting reads can be assembled into a genome-scale transcription profile. It is a more comprehensive and efficient way to measure Transcriptome composition, obtain RNA expression patterns, and discovers new exons and genes (Mortazavi et al., 2008; Wang et al., 2009); sequencing data of Transcriptome was assembled using various assembly tools, functional annotation of genes and pathway analysis carried with various Bioinformatics tools. The large number of transcripts reported in the current study will serve as a valuable genetic resource for Cicer arietinum L.

High-throughput short-read sequencing is one of the latest sequencing technologies to be released to the genomics community. For example, on average a single run on the Illumina Genome Analyser can result in over 30 to 40 million single-end (~35 nt) sequences. However, the resulting output can easily overwhelm genomic analysis systems designed for the length of traditional Sanger sequencing, or even the smaller volumes of data resulting from 454 (Roche) sequencing technology. Typically, the initial use of short-read sequencing was confined to matching data from genomes that were nearly identical to the reference genome. Transcriptome analysis on a global gene expression level is an ideal application of short-read sequencing. Traditionally such analysis involved complementary DNA (cDNA) library construction, Sanger sequencing of ESTs, and microarray analysis. Next generation sequencing has become a feasible method for increasing sequencing depth and coverage while reducing time and cost compared to the traditional Sanger method (L J Collins et al).

1 Methods

1.1 Sequence Retrieval

This study is focus on the de novo assembly and sequence annotation of Cicer arietinum L. of SRR627764 from NCBI database. Raw data downloaded from NCBI SRA (http://trace.ncbi. nlm.nih.gov/Traces/sra/?run=SRR627764) which is from Illumina platform and the sample is single ended with 36 M spots and 41.8% GC content. Raw sequence was converted in to fastq file format for further annotation with the use of SRA TOOL KIT from NCBI. (http://trace.ncbi.nlm.nih.gov/Traces/sra/sra. cgi?view=software).

1.2 NGS QC Toolkit

NGS QC Toolkit, it is an application for quality check and filtering of high-quality data. This toolkit is a standalone and open source application freely available at http://www.nipgr.res.in/ngsqctoolkit.html. The toolkit is comprised of user-friendly tools for QC of sequencing data generated using Roche 454 and Illumina platforms, and additional tools to aid QC (sequence format converter and trimming tools) and analysis (statistics tools). A variety of options have been provided to facilitate the QC at user-defined parameters. The toolkit is expected to be very useful for the QC of NGS data to facilitate better downstream analysis (Patel RK, et al).

1.3 De novo sequence assembly by CLC GENOMICS WORKBENCH 7

A comprehensive and user-friendly analysis package for analyzing, comparing, and visualizing next generation sequencing data. This package was used for de novo sequence assembly of sequence with by default parameters of de novo assembly tool (http://www.clcbio.com/products/clc-genomics-workbench/).

1.4 BLASTX

The assembled file was further considered for annotation in which first step was to identify translated protein sequences from contigs. BLASTX at NCBI (http://www.ncbi.nlm.nih.gov/blast/Blast.cgi?PROGRAM=blastx&PAGE_TYPE=BlastSearch&LINK_LOC=blasthome) performed with changing few parameters like non redundant protein database (nr) selected as Database; Eudicots selected in organism option and in Algorithm parameters Max target Sequences set to 10 and Expect threshold set to 6.

1.5 Blast2GO

Blast2GO is an ALL in ONE tool for functional annotation of (novel) sequences and the analysis of annotation data (http://www.blast2go.com/b2ghome). Based on the results of the protein database annotation, Blast2GO was employed to obtain the functional classification of the unigenes based on GO terms. The transcript contigs were classified under three GO terms such as molecular function, cellular process and biological process (Ness et al., 2011; Shi et al., 2011; Wang et al., 2010). WEGO http://www.wego.genomics.org.cn) tool was used to perform the GO functional classification for all of the unigenes and to understand the distribution of the gene functions of this species at the macro level. The KEGG database (http://www.genome.jp/kegg/pathway.html) was used to annotate the pathway of these unigenes.

1.6 SSR mining

We employed MIcroSAtellite (MISA) (http://pgrc.ipk-gatersleben.de/misa/) for microsatellite mining which gives various statistical outputs of transcripts with useful information.

1.7 Plant transcription factor

PlantTFcat: An Online Plant Transcription Factor and Transcriptional Regulator Categorization and Analysis Tool used for identifying plant transcription factor in sequences (http://plantgrn.noble.org/PlantTFcat/).

2 Result and Discussions:

2.1 NGS QC Toolkit

Sequence was filtered with this tool by removing adaptors and other contaminated materials then quality of sequence also checked with this tool and finally high quality filter sequence file considered for de novo sequence assembly (Table 1).

Table 1 NGS QC Toolkit Result

2.2 De novo Sequence Assembly

CLC GENOMICS WORKBENCH 7 considered for de novo sequence assembly with by default parameters like Mismatch Cost = 2, Insertion Cost = 3, Deletion Cost = 3, Length Fraction = 0.5, Similarity Fraction = 0.8, Word size = 21 and finally 34678 contigs generated with average value of 805 by this software and other details are shown in Table 2.

Table 2 Contig measurement

2.3 Functional annotation with BLASTX and blast2GO

2.3.1 BLASTX

BLASTX was performed to align the contigs against non-redundant sequences database using an E value threshold of 10-6. Out of 34678 transcript contigs, 25459 were having BLAST hits to known proteins with high significant similarity and 3492 had no BLAST hits (Table 3).

Table 3 Blast Result

Out of total transcripts contigs, Table 4 and Figure 1 shows that species distribution in which 22954 sequences showed significant similarity with Cicer arietinum L. itself and least similarity was found with Genlisea aurea (42).

Table 4 Blast Result of Species Distribution

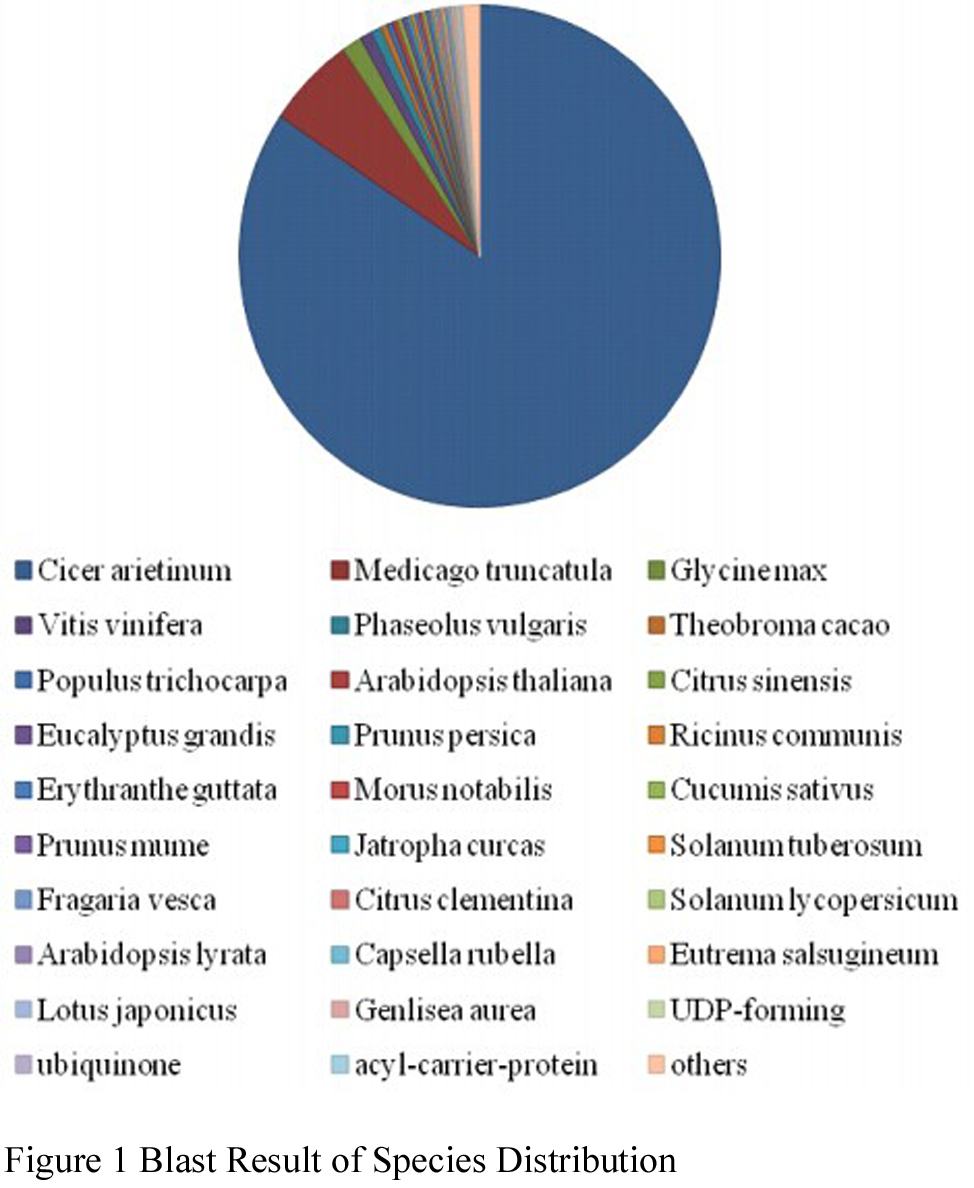

Figure 1 Blast Result of Species Distribution

2.3.2 Enzyme Code (EC) Classification

Enzyme classified with total of 248 sequences which is further classified into six classes which are of Oxidoreductases (51), Transferases (92), Hydrolases (76), Lyases (20), Isomerases (5) and Ligases (4) which is shown in Figure 2.

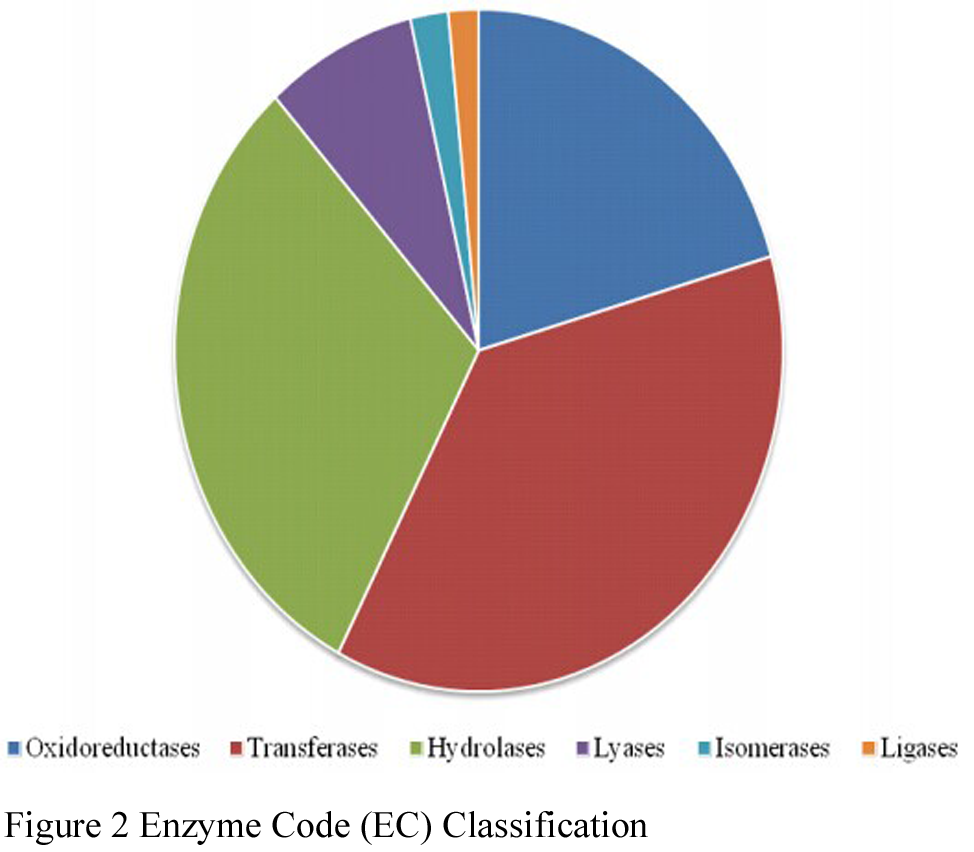

Figure 2 Enzyme Code (EC) Classification

2.3.3 Gene Ontology (GO) Classification

To functionally categorize Cicer arietinum L. transcript contigs, Gene Ontology (GO) terms were assigned to each assembled transcript contigs. Out of 34678 transcript contigs, 2304 unigenes were grouped into GO functional categories (http://www.geneontology.org), which are distributed under the three main categories of Molecular Function (916), Biological Process (734) and Cellular Components (654) (Figure 3). Figure 4 which is output of WEGO tool; it shows that, Within the Molecular Function category, genes encoding binding proteins and proteins related to catalytic activity were the most enriched. Proteins related to metabolic processes and cellular processes were enriched in the Biological Process category. With regard to the Cellular Components category, the cell and cell part were the most highly represented categories.

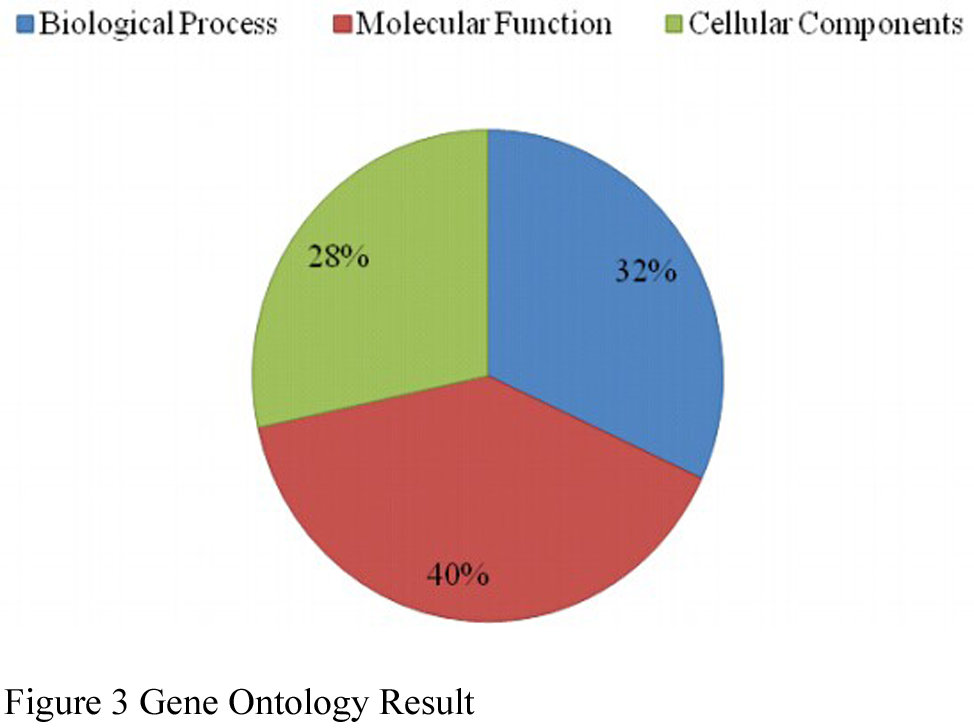

Figure 3 Gene Ontology Result

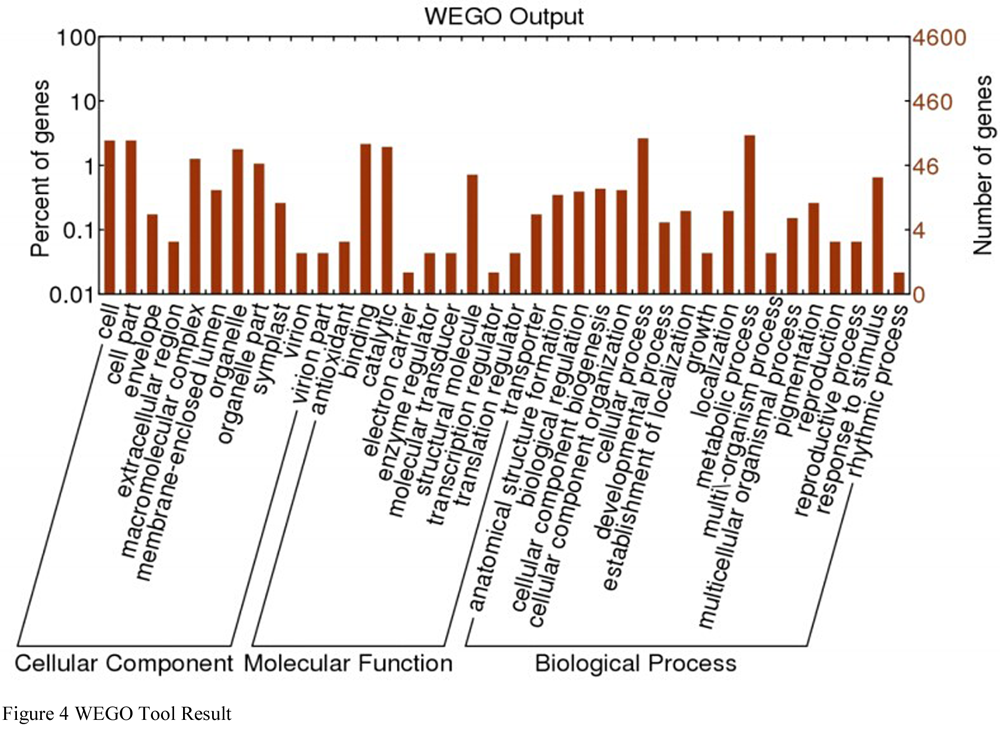

Figure 4 WEGO Tool Result

A total of 786 unigenes were annotated with 78 pathways in the KEGG database (http://www.genome. jp/kegg/pathway.html). Many transcripts include various pathways like metabolic pathways, plant-pathogen interaction pathways, fatty acid metabolism pathway and fatty acid biosynthesis.

2.4 SSR mining

Microsatellite markers (SSR markers) are some of the most successful molecular markers in the construction of a Cicer arietinum L. genetic map and in diversity analysis (Zhang et al).

For identification of SSRs, all transcripts were searched with perl script MISA. We identified a total of 5228 SSRs in 4391 transcripts (Table 5). The mono-nucleotide SSRs represented the largest fraction of SSRs identified followed by tri-nucleotide and di-nucleotide SSRs. Although only a small fraction of tetra-, penta- and hexa-nucleotide SSRs were identified in transcripts, the number is quite significant.

Table 5 Statistics of SSRs identified in transcripts

2.5 Plant Transcription Factor

Further, transcription factor encoding transcripts were identified by sequence comparison to known transcription factor gene families. Result shows that transcription factor genes distributed with at least 97 families were identified. The overall distribution of transcription factor encoding transcripts among the various known protein families is very similar with that of other legumes as predicted earlier (Libault et al., 2009).

Conclusion

This study is focus on Cicer arietinum L. species (SRR627764) from NCBI database for de novo Transcriptome analysis by RNA-seq using next-generation Illumina sequencing.

The transcriptome sequencing enables various functional genomics studies for an organism. Although several high throughput technologies have been developed for rapid sequencing and characterization of transcriptomes, expressed sequence data are still not available for many organisms, including many crop plants. In this study, we performed de novo functional annotation of the Cicer arietinum L. transcriptome without considering any reference species with significant non-redundant set of 34678 transcripts. The detailed analyses of the data set has provided several important features of Cicer arietinum L. transcriptome such as GC content, conserved genes across legumes and other plant species, assignment of functional categories by GO terms and identification of SSRs by MISA tool. It is noted that this study of Cicer arietinum L. will be useful for further functional genomics studies as it includes useful information of each transcript.
